| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | howo |
| प्रमाणन: | iso, |
| मॉडल संख्या: | होवो -7 |
| न्यूनतम आदेश मात्रा: | 1 पीसी |
|---|---|
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | नंगा |
| प्रसव के समय: | 40 श्रमिक दिन |
| भुगतान शर्तें: | एल/सी,टी/टी |
| आपूर्ति की क्षमता: | 500 यूनिट/माह |
| प्रतिरूप संख्या।: | Howo -7 6*4 डंप ट्रक | घोड़े की शक्ति: | 420hp.371hp.380hp |
|---|---|---|---|
| स्टीयरिंग: | बाएं/दाएं हाथ का ड्राइविंग | ड्राइव व्हील: | 8*4 |
| कर्षण प्रकार: | HW19710 | एयर कंडीशनर: | साथ |
| स्थिति: | नया | सीन -सीट: | वायु निलंबन सीट |

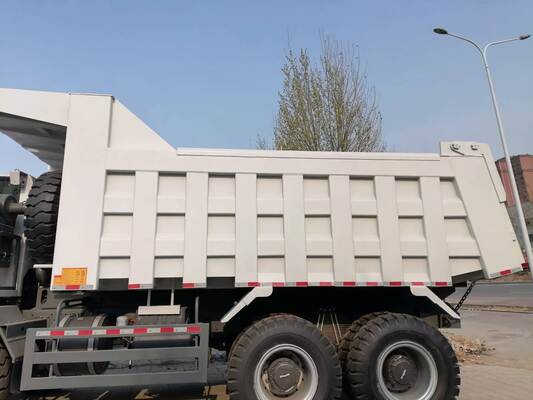

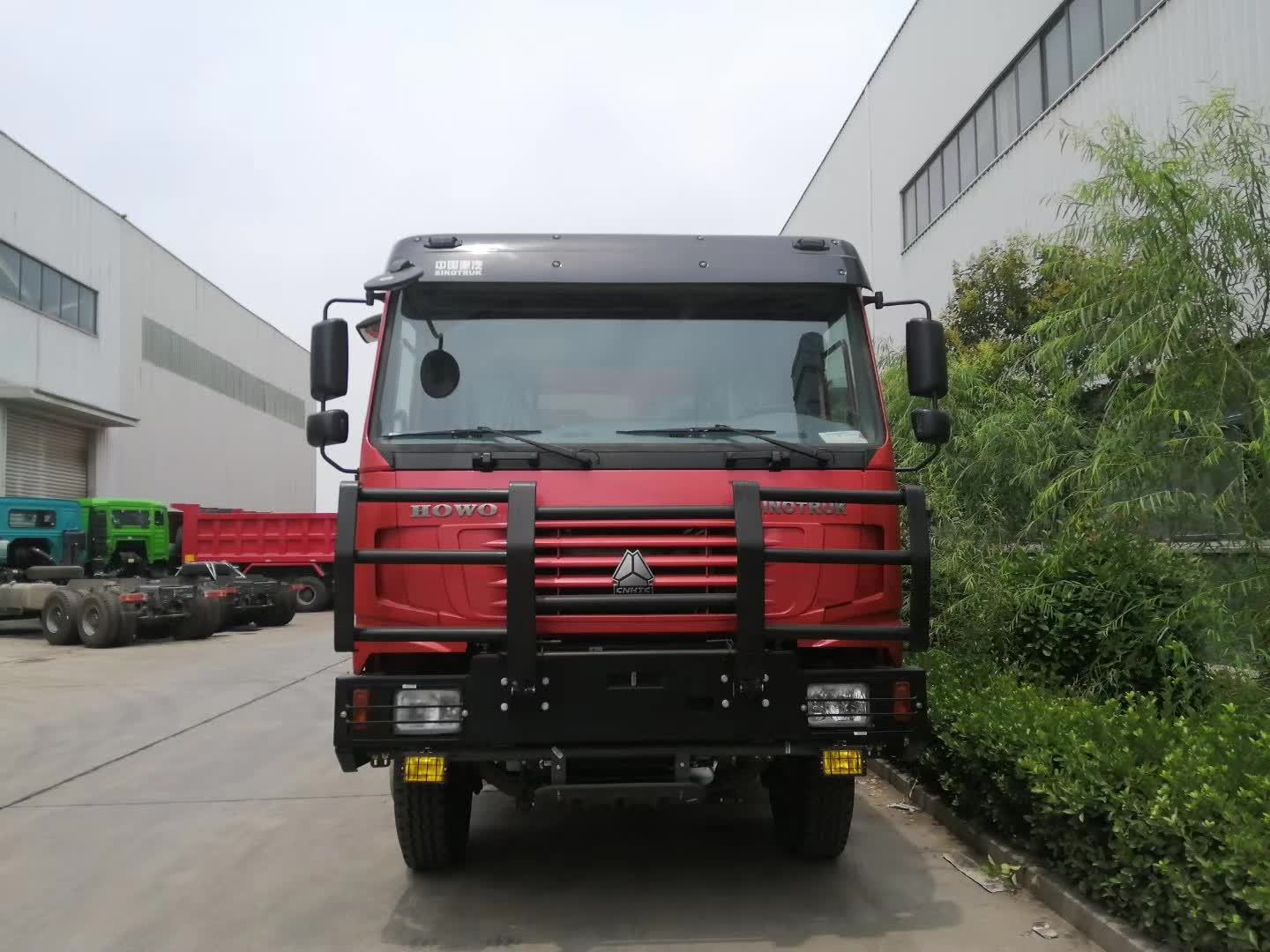

Built for mines. Built for Africa. Built to last.
| Spec | What You Get |
|---|---|
| Drive Type | 8×4 – maximum stability for heavy loads |
| Engine | Weichai 371HP / 380HP / 400HP – Euro II |
| Gearbox | HW19710 (10 forward + 2 reverse) + HW50 PTO |
| Front Axle | VGD95 – 9.5T capacity |
| Rear Axle | MCP16ZG – 16T + 16T double reduction |
| Tires | 12.00R20 (12+1 pcs, with spare) |
| Fuel Tank | 300L – 400L |
| Cargo Box | 18m³ – 28m³ (customizable) |
| Cab | H77L with A/C + sleeper + air seat |
| Warranty | 1 year / 20,000 km |
| Problem | HOWO NX 8×4 Solution |
|---|---|
| Heavy loads (30-40 tons) | 4 axles distribute weight – less stress on tires and suspension |
| Muddy mine roads | 8×4 drive = 8 wheels on ground – superior traction |
| Steep inclines | 400HP + double reduction axles – climbs without slipping |
| Rocky terrain | Reinforced chassis + heavy-duty suspension – absorbs impact |
| Long hours in cab | Air suspension seat + A/C + wide sleeper – reduces driver fatigue |
| Component | Specification |
|---|---|
| Drive Type | 8×4 |
| Engine | Weichai WP10.380E22 / WP12.400E32 – 371-430HP, Euro II |
| Gearbox | HW19710 (10F + 2R) with HW50 PTO |
| Front Axle | VGD95 – 9.5T × 2 |
| Rear Axle | MCP16ZG – 16T + 16T (double reduction, with diff locks) |
| Tires | 12.00R20 (steel radial), 12+1 pcs |
| Fuel Tank | 300L – 400L steel |
| Suspension | Front: 11 leaf springs + shocks / Rear: 11 leaf + bogie |
| Brakes | Dual circuit air brakes + exhaust brake |
| Cab | H77L – single sleeper, A/C standard, air seat, 4-point suspension |
| Chassis Frame | Double frame (8+8mm) – reinforced for heavy loads |
| Application | Box Dimensions | Material Thickness | Special Features |
|---|---|---|---|
| Granite / Hard rock | 5400-5800 × 2300 × 1500mm | Floor 12mm / Side 10mm | Anti-smash strips + triangular ribs |
| Ore / Mining | 5600 × 2300 × 1500mm | Floor 10mm / Side 8mm | Reinforced welds + impact plates |
| Sand / Gravel | 5800 × 2300 × 1700mm | Floor 8mm / Side 6mm | Standard U-shape |
| Large volume | 7300 × 2300 × 1700mm (28m³) | Floor 8mm / Side 6mm | Front lifting system |
Mining Upgrade: Based on customer feedback from Ghana, stone mines require 12mm floor + 10mm side plates with anti-smashing strips on the baffle and triangular reinforcement ribs. Higher initial cost, but much longer service life .
| Model | Horsepower | Torque | Load Capacity | Best For |
|---|---|---|---|---|
| Standard | 371HP | 1,500 Nm | 25-30 tons | General construction, sand/gravel |
| Advanced | 380-400HP | 1,700-2,000 Nm | 30-35 tons | Quarries, stone hauling |
| Pro | 430-450HP | 2,000-2,500 Nm | 35-40+ tons | Mining, heavy rock, steep inclines |
